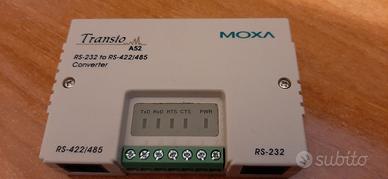

Transio moxa a 52

Descrizione

Oggetto usato funzionante Ritiro in zona Pistoia Prato Spedizione euro 7,00 RS 322 to- 422/485 o Serial Communication RS-232 Signals Tx, Rx, DTR, DSR, RTS, CTS, DCD, GND (RJ45) RS-422/485 Signals Supports RS-422, 2-wire RS-485 (DIP switch selectable) Supports 4-wire RS-422, up to 10 nodes, 1.2 km with RTS, CTS Supports 2-wire RS-485, up to 32 nodes, 1.2 km Optical Isolation Protection 2 KV (A53), power/signal Power EFT/Surge Protecction 25 KV ESD surge protection o RS-422/485 Side RS-485 Data Direction Control ADDC(TM) o Serial Transmission Baudrate 50 bps to 230.4 Kbps o Physical Characteristics Housing ABS Weight 85 ± 5 g Dimensions 90 x 60 x 21 mm o Environmental Limits Operating Temperature 0 to 55°C (32 to 131°F) Operating Humidity 5 to 95% RH Storage Temperature -20 to 75°C (-4 to 167°F) o Power Requirements Input Voltage 9 to 30 VDC, 350 mA Power Consumption A52: 170 mA @ 9 V A53: 285 mA @ 9 V Over Current Protection Protection against 2 signals shorted together o Regulatory Approvals CE Class A FCC Class A Usato funzionante
