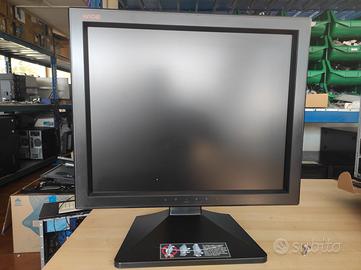

Monitor Medicale WIDE PA19ASX 19" Clinical & Modal

Descrizione

Modality Color Display 10-bit LUT1,280 x 1,024 resolution 1,000 cd/m² Brightness Factory Calibrated DICOM Model PA19ASX LCD Panel TFT AMLCD IPS Color Native Resolution 1280(H) x 1024(V) Pixel Pitch 0.294mm x 0.294mm Active Display Area 376.3mm x 301.1mm (14.8"x11.8") Active Screen Size (Diagonal) 481.9mm (19.0") Viewing Angle (Typ) 170º, 170º at 10:1 contrast Ratio Brightness Max. (Typ) 1,000 cd/m² Brightness Calibrated (Typ) 500 cd/m² Contrast Ratio (Typ) 1,000:1 Bit Rate for Look-Up Table 10-bit Digital Video Input DVI-D, Analog D-Sub 15Pin, BNC(SOG) IN, S-Video, CVBS Display Communication DDC2B (VESA compliance) Universal Serial Bus (USB) N/A Power Supply AC Input: 100-240V±10% / 60Hz/50Hz±3Hz | DC Output: +12V Built-in Sensors SBC Luminance Uniformity Control (LUC) N/A Display Adjusstments Power On/Off, Menu, Exit, Left/Right, DICOM mode, Brightness OSD Languages English, German, French, Italin, Spanish LED Lignt (PrivateLite®) N/A Power Consumpiton Max: 75W Tilt/Swivel/Height Adjustments -3º,+30º/±30º/108mm Pprtrait/Landscape Rotation 90º (Counter clockwise) Mountiong Hole VESA Standard (100x100mm) Weight 8.0kg(17.64lb) Dimension 436.5mm(W)x455.5mm(H)x200mm(D) Operational Temperature 0ºC to 40ºC (32ºF to 104ºF) Operational Humidity 10% to 80% Storage Temperature -20?C to 60?C (4?F to 140?F) Certifications and Standards UL60601-1, IEC/EN6060-1, FCC ClassB, VCCI, CE, KC, CCC Options Protective Glass
