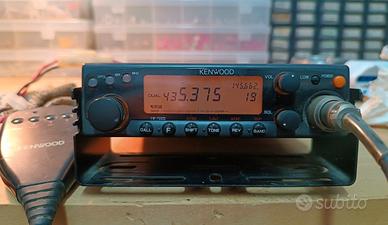

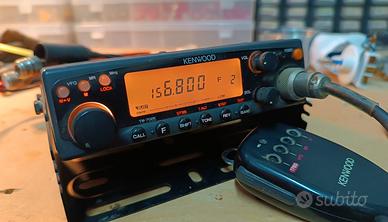

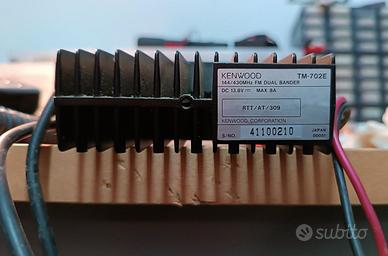

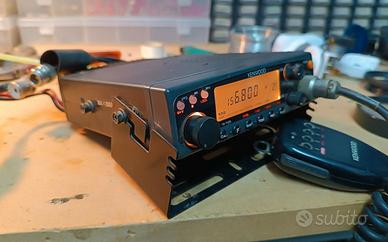

Ricetramittente V/UHF 144/430 MHz - Kenwood TM702E

Descrizione

Ricetramittente professionale dual band VHF 144-146 MHz / UHF 430-440 Mhz - Kenwood TM-702E SPECIFICATIONS GENERAL Type: Amateur VHF/UHF transceiver Frequency range: Europe TX: 144-146 / 430-440 MHz RX: 144-146 / 430-440 MHz Tuning steps: 5 / 10 / 12.5 / 15 / 20 / 25 KHz Frequency stability: ±10 ppm @ -20 to +60°C (-4 to +140°F) Mode: FM Channels / memory management: 20 regular 1 call Some memories have dual function RAM storage with lithium battery backup Repeater shift / offset: VHF: ±600 KHz UHF: ±1.6 MHz and -7.6 MHz For other offsets, use odd split memories 17 to 20 Power supply: 11.7-15.8 VDC Current drain / power consumption: RX: Max 600 mA TX: Max 8 A Antenna impedance/connector: 50 ohm / One SO-239 and one N-jack (On pigtails) Dimensions (W*H*D): 140*40*200 mm (5.51*1.58*7.87") Weight: 1.4 Kg (3.09 lb) Other features: CTCSS/PL encoder. Dimmer. RECEIVER SECTION Receiver system: Double conversion superheterodyne 1st IF: 30.3 MHz (VHF) - 30.825 MHz (UHF) 2nd IF: 455 KHz Sensitivity: 0.16 uV (12 dB SINAD) Selectivity: 12 KHz (-6 dB) 24 KHz (-60 dB) Image rejection: AF output power / speaker: 2 W at 5% distortion / 8 ohm External speaker connector: 3.5 mm, 8 ohm TRANSMITTER SECTION RF output power: High MId Low 2 m: 25 W 10 W 2 W 70 cm: 25 W 10 W 2 W Modulation system: Reactance Max FM deviation (Factory set): ±5 KHz Spurious emissions: Better than -60 dB Microphone impedance / connector: 500-600 ohm / 8-pin (Metal locking ring connector) Microphone input level: ? mV Completamente funzionante e in ottimo stato di conservazione. Vendo per inutilizzo al miglior offerente. Merce visibile, testabile e ritirabile presso lo studio di Ponsacco (Pisa). Preferibile il ritiro a mano. Spedizione e/o trasporto a carico dell'acquirente. Contattare Marco al 347.3000.281
