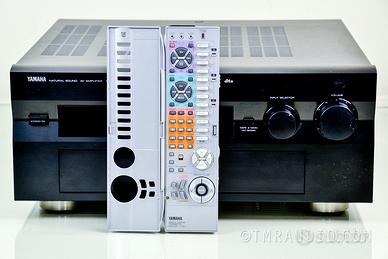

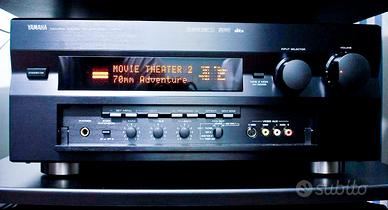

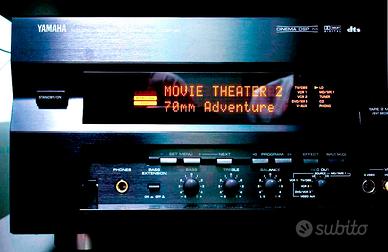

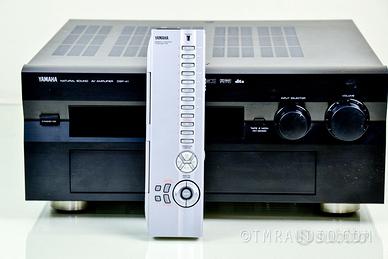

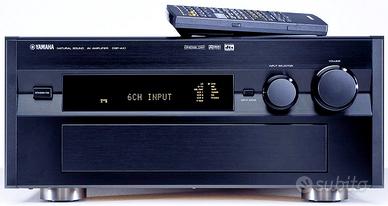

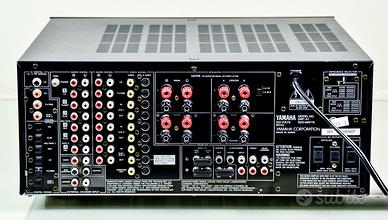

Amplificatore Integrato Yamaha DSP-A1 home Theater

Descrizione

NON SPEDISCO Descrizione Amplificatore Integrato Yamaha DSP-A1 home Theater Surround Sound Processor/Amplifier 400watt di potenza 23 chili di qualità The DSP-A1 is a 7-channel processor/amplifier providing the finest performance available for music and video sound. The processor provides 42 possible programs including Dolby Digital, DTS, Dolby Pro Logic, Yamaha's proprietary Tri-Field Processing, Cinema DSP, and Hi-Fi Digital Sound Field Processing. Specifications Power, Min. RMS Output power/ch., 8 ohms MAIN: 20 to 20 kHz, 0.015% THD = 110W, CENTER: 20 to 20 kHz, 0.015% THD = 110W, REAR EFFECTS CH: 20 to 20 kHz, 0.015% THD = 110W, FRONT EFFECTS CH: 1 kHz, 0.05% THD = 35W Dynamic Power per Channel 8/6/4/2 ohms = 150/180/240/340W Damping Factor (8 ohms, 20 Hz-20 kHz) 200 Frequency Response 20 to 20 kHz = +/-0.5 dB (CD) Total Harmonic Distortion, 20 to 20 kHz CD = 0.005% (CD to Pre-Out, 1V) Signal-to-Noise Ratio, IHF-A Network CD (Input Shorted) = 96 dB, Phono MM (5 mV Input Shorted) = 86 dB Input Sensitivity/ Impedance CD (100W/8ohms) = 150 mV/47k ohms, Phono MM = 2.5 mV/47k ohms, Main In = 1 V/47k ohms Tone Control Section Bass Control Range = +/-10 dB/50 Hz, Bass Turnover Frequency = 350 Hz, Treble Control Range = +/-10 dB/20 Hz, Treble Turnover Frequency 3.5 kHz Center Graphic Equalizer 5-Band Digital Graphic Equalizer, Gain = +/-6 dB, Q = 0.7, Center Frequencies = 100, 300, 1,000, 3,000, 10,000 Hz Video Signal Level Composite = 1 Vp-p/75ohms, S-Video = Y=1 Vp-p/75ohms; C= 0.286 Vp-p/75ohms Video Signal-to-Noise 50 dB Monitor Out Frequency Response 5 Hz-10 MHz, -3dB Dimensions Width = 435mm/17-1/8 in., Height = 191mm/7-1/2 in., Depth = 473mm/18-3/4 in. Weight 23.0 kg/52 lbs. 14 oz.
